Yaesu M-90MS Microphone and Stand Mounting Kits M-90MS

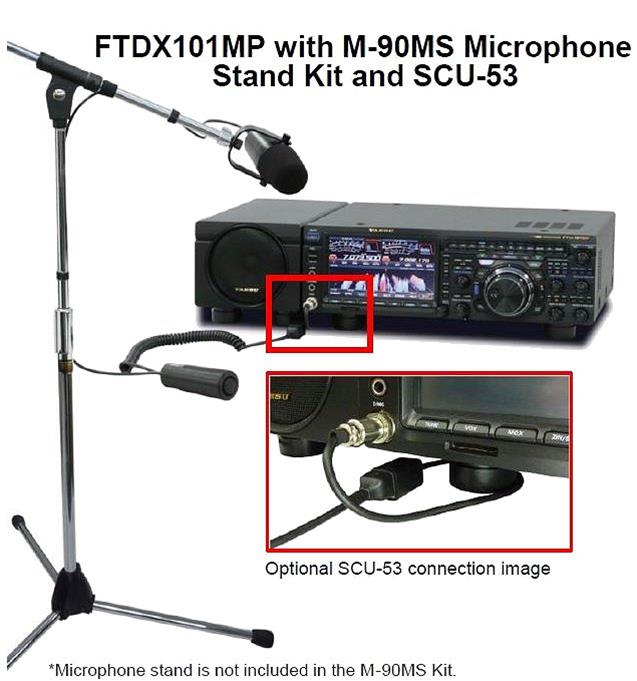

Yaesu M-90MS Microphone and Stand Mounting Kits bring the great Yaesu microphone sound to your boom or mic stand, for a completely new way to enjoy your Yaesu transceiver. The Yaesu M-90MS microphone head utilizes a finely tuned dynamic element to deliver rich low to mid-frequency response, desirable for a clear and concise conversational sound that is pleasing to the ear of the listener. The oversize dynamic microphone element and windscreen of the M-90MS is designed to accentuate voice input from the front and limit ambient noise and sounds from the side. The attached microphone cable features a PTT hand switch with an 8-pin modular connector termination. The M-90MS may be used with virtually any Yaesu HF transceiver* with some models requiring the optional SCU-53 8-pin modular jack to 8-pin round plug adapter**. For difficult band conditions, a built-in low-cut filter creates clear and crisp audio characteristics by shaping the low frequency response (cut off at 340Hz, -6dB/octave). An integrated isolation transformer enhances the audio quality of this fine microphone.Yaesu M-90MS microphone specifications:Microphone type: Dynamic element, preamplified Supply voltage: 5.0 V DC ±10 percent (supplied by most Yaesu transceiver mic connectors*)Frequency response: 30 to 17,000 Hz Sensitivity: -60 dB (1 kHz 0 dB=1V/1Pa) Microphone impedance: 600 ohms Dimensions: Diameter: 2.45 in. (62mm), Length: 6.38 in. (162mm) Weight: 7.05 oz. (200 g) with bracket, without cableNOTE: The M-90MS includes the boom or stand mount bracket. A boom or mic stand are not supplied. The M-90MS microphone head does not have a detachable connector. The Yaesu M-90MS comes with the PTT hand switch and 8-pin modular connector cable that is directly compatible with the FTDX10, FT-991A, FT-891, FT-450/D, FT-897/D, FT-857/D, FT-18ND, FT-817/ND, and FT-900. ** SCU-53 8-pin modular jack to 8-pin round plug adapter is required for use on FTDX101 Series, FTDX5000 Series, FTDX3000/D, FTDX1200, FTDX9000 Series, FT-2000/D, FT-950, FT-920, FT-1000MP, FT-1000MP MARK-V, FT-1000MP MARK-V Field, and FT-847.*Optional Power Supply Kit ABB19X001 and SCU-53 are required for M-90MS use with Legacy Yaesu FT-1000, FT-990, FT-890, FT-840 and FT-747 transceiver     Fits Transceiver ModelApplication Notes FT-1000 This legacy model transceiver requires Power Supply Kit ABB19X001 and SCU-53 to use the M-90MS microphone. FT-1000D This legacy model transceiver requires Power Supply Kit ABB19X001 and SCU-53 to use the M-90MS microphone. FT-1000MP SCU-53 cable is required only when connecting the M-90MS to Yaesu HF transceivers equipped with a round 8-pin microphone connector. FT-1000MP MKV SCU-53 cable is required only when connecting the M-90MS to Yaesu HF transceivers equipped with a round 8-pin microphone connector. FT-1000MP MKV Field SCU-53 cable is required only when connecting the M-90MS to Yaesu HF transceivers equipped with a round 8-pin microphone connector. FT-2000 SCU-53 cable is required only when connecting the M-90MS to Yaesu HF transceivers equipped with a round 8-pin microphone connector. FT-2000D SCU-53 cable is required only when connecting the M-90MS to Yaesu HF transceivers equipped with a round 8-pin microphone connector. FT-450 - FT-450D - FT-747 This legacy model transceiver requires Power Supply Kit ABB19X001 and SCU-53 to use the M-90MS microphone. FT-817 - FT-817ND - FT-818 - FT-818ND - FT-840 This legacy model transceiver requires Power Supply Kit ABB19X001 and SCU-53 to use the M-90MS microphone. FT-847 SCU-53 cable is required only when connecting the M-90MS to Yaesu HF transceivers equipped with a round 8-pin microphone connector. FT-857 - FT-857D - FT-890 This legacy model transceiver requires Power Supply Kit ABB19X001 and SCU-53 to use the M-90MS microphone. FT-891 - FT-897 - FT-897D - FT-900 - FT-920 SCU-53 cable is required only when connecting the M-90MS to Yaesu HF transceivers equipped with a round 8-pin microphone connector. FT-950 SCU-53 cable is required only when connecting the M-90MS to Yaesu HF transceivers equipped with a round 8-pin microphone connector. FT-990 This legacy model transceiver requires Power Supply Kit ABB19X001 and SCU-53 to use the M-90MS microphone. FT-991 - FT-991A - FTDX-10 - FTdx-101D SCU-53 cable is required only when connecting the M-90MS to Yaesu HF transceivers equipped with a round 8-pin microphone connector. FTdx-101MP SCU-53 cable is required only when connecting the M-90MS to Yaesu HF transceivers equipped with a round 8-pin microphone connector. FTdx-1200 SCU-53 cable is required only when connecting the M-90MS to Yaesu HF transceivers equipped with a round 8-pin microphone connector. FTDX-3000 SCU-53 cable is required only when connecting the M-90MS to Yaesu HF transceivers equipped with a round 8-pin microphone connector. FTDX-5000 SCU-53 cable is required only when connecting the M-90MS to Yaesu HF transceivers equipped with a round 8-pin microphone connector. FTDX-5000D SCU-53 cable is required only when connecting the M-90MS to Yaesu HF transceivers equipped with a round 8-pin microphone connector. FTDX-5000MP SCU-53 cable is required only when connecting the M-90MS to Yaesu HF transceivers equipped with a round 8-pin microphone connector. FTDX-5000MPL SCU-53 cable is required only when connecting the M-90MS to Yaesu HF transceivers equipped with a round 8-pin microphone connector. FTDX-9000 SCU-53 cable is required only when connecting the M-90MS to Yaesu HF transceivers equipped with a round 8-pin microphone connector. FTDX-9000D SCU-53 cable is required only when connecting the M-90MS to Yaesu HF transceivers equipped with a round 8-pin microphone connector. FTDX-9000MP SCU-53 cable is required only when connecting the M-90MS to Yaesu HF transceivers equipped with a round 8-pin microphone connector.
