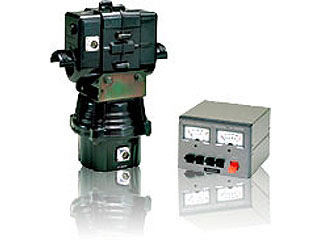

Yaesu G-5500DC Rotor
Light-Medium Duty - Azimuth+Elevation, 11 Sq. Ft. (Rotor Diameter 7 12in, Rotor Height 12 1/2in, Mast Diameter 1 1/2 - 2 1/2in, Boom Diameter 1 1/4 - 1 5/8in)The Yaesu G-5500DC is ideal for space communication antennas as well as many other amateur applications. The G-5500DC features an interface jack for computer control and a full Azimuth-Elevation rotation system with a rotation range of 180 degrees from the Elevation Rotator and a turning range of 450 degrees from the Azimuth Rotator.Specifications:-Wind Load: 1m-K-Factor: 60-Stationary Torque: AZ:4,000kg/cm EL:4000kg/cm-Rotation Torque: AZ: 600kg/cm EL:1,400kg/cm-Max. Vert. Load: 30kg-Max. Vert. Intermittent Load: 100kg-Backlash: AZ:1° EL:1°-Mast Size: AZ:38 - 62 Ø EL:AZ:38 - 62 Ø-360° Rotation Time: AZ:70sec/50Hz 58sec/60Hz-180° Elevation Time: EL:80sec/50Hz 67sec/60Hz-Boom Diameter: EL 32 - 43Ø-Rotator Diameter x Height: 186Ø x 254(W) X 350 (H)-Weight: 7.8kg-Cable Requirement: 2 x 6 •requires two six conductor rotor cables Box contains the following items:Elevation Rotator Unit ................................. 1Azimuth Rotator Unit .................................. 1Controller Unit ............................................. 1Mast Clamp (pair) ........................................ 2Pipe clamp ................................................... 2U Bracket ..................................................... 1M8 x 16 Hex. Bolt ....................................... 4M8 x 25 Hex. Bolt ....................................... 8M8 x 70 Hex. Bolt ....................................... 4M8 x 95 Hex. Socket Bolt ........................... 1U-Bolt .......................................................... 26mm Spring Washer .................................... 46mm Flat Washer ......................................... 48mm Spring Washer .................................. 188mm Flat Washer ....................................... 12M8 Square Nut............................................. 1M8 Hex. Nut ................................................ 4M6 Hex. Nut ................................................ 48-pin DIN Plug ............................................ 17-pin Metal Connector ................................. 2Water Resist Cap ......................................... 2Spare Fuse (117V:2A, 220V:1A) ................. 1Instruction Manual ....................................... 1
