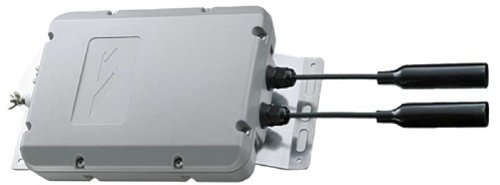

Yaesu FC-40 Automatic Antenna Tuner

  The FC-40 is a microprocessor-controlled antenna impedance matching network designed to provide all-amateur-band transmitting capability with the FT-897/857 Series of transceivers, when used with an end-fed random wire or long whip antenna. The FC-40 makes use of the control circuitry built into the transceiver, which allows the operator to control and monitor automatic operation of the FC-40, which mounts near the antenna feedpoint. The FC-40 uses specially-selected, thermallystable components, and is housed in a waterproof case to withstand severe environmental conditions with high reliability. Operating Frequency Range: 1.8 - 54 MHz with 20+ m end-fed wire, 7 - 54 MHz with YA-007 HF 2.5 m Mobile Whip AntennaInput Impedance: 50-OhmsMaximum Power: 100 Watts Matched SWR: 2.0:1 or less (if antenna is not a multiple of 1/2 )Tune-up Power: 4 W ~ 60 W Tune-up Time: 10 seconds maximumImpedance Matching Memories: 100 channels Power supply: 13.8 V DC ±15% (supplied from transceiver)Case Size (WHD): 9.4" x 7" x 2.1" (236 x 175 x 53 mm)Unit Weight: 2.6 lbs. (1.2 kg)Shipping weight: 9lbs
