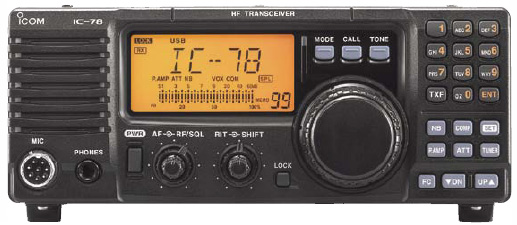

RKB-78 Icom IC-78 HF Transciever For Export only MARS CAP
RKA-78 Repack Icom IC-78 HF Transceiver REPACK “B” CONDITION Slightly used to used appearance, may have some minor scratches Original Gift box may not be included. (Box may have dents, writing, shipping labels, etc.) ALL MAJOR Accessories included: Base and Mobiles – Power cable and microphone HH’s – Antenna, Battery and Charger MAY NOT have the Owner’s Manual (Downloadable from IA website) 90-DAY Warranty from date of consumer purchase, must have proof of purchase Reliable long distance communications Simple operation with keypad A minimum of buttons and knobs provide uperior feature selectability. The 10 keypad allows you to enter an operating frequency or a memory channel number directly. VFO mode is available for continuous frequency operation. General coverage receive The IC-78 covers 0.03-29.999999MHz* in SSB, CW, RTTY and AM modes. The 1st receiver mixer provides superior receiver sensitivity, rejecting nearby interfering signals. *Guaranteed range: 0.5–29.999999MHz Front mounted loud speaker With the speaker facing the operator, audio sounds can be clearly heard without impediment during operation. Other features 101 memory channels VOX (Voice Operated Transmission) Digital S/RF meter Band stacking register IF shift interference rejection Squelch/RF gain control General Frequency range Rx Tx 0.030-29.999999 MHz*1 1.6-29.999999 MHz*2 *1 Guaranteed range: 0.5-29.999999 MHz *2 Not guaranteed for some frequency bands Mode USB, LSB, CW, RTTY (FSK), AM Number of memory Ch. 99 (duplex) + 1 call channel Frequency stability Less than ±200 Hz from 1 minute to 60 minutes after power on. After that rate of stability less than ±30 Hz/hr. at +25°C (+77°F). Temperature fluctuations 0°C to +50°C (+32°F to +122°F) less than ±350 Hz. Power supply requirement 13.8 V DC ±15% (negative ground) Current drain (at 13.8 V DC) Rx Stand-by 1.3 A max audio 2.0 A Tx max. power 20.0A Usable temperature range -10°C to +60°C (+14°F to+140°F) Antenna connector SO-239 (50Ω) Dimensions (projections not included) 240mm (W) x 95mm (H) x 239mm (D) 97/16in (W) x 33/4in (H) x 913/32in (D) Weight 3.8 kg; 8 lb 6 oz ACC connector 13-pin REMOTE connector 2-conductor 3.5 (d) mm; (1/8") Transmitter Modulation system SSB AM Balanced modulation Low level modulation Output power SSB, CW, RTTY AM 2-100W 2-40W Spurious emissions Less than -46 dB below peak output power Carrier suppression More than 40 dB Unwanted sideband More than 50 dB Microphone connector 8-pin connector (600Ω) KEY connector 3 conductor 6.5 (d) mm (1/4") SEND connector Phono (RCA) ALC connector Phono (RCA) Receiver Receive system Double-conversion superheterodyne Sensitivity (10 dB S/N) SSB, CW, RTTY AM 0.16 µV (1.6-29.999999 MHz) (0.5 µV at 12 dB SINAD) 13 µV (0.5-1.599999 MHz) 2 µV (1.6-29.999999 MHz) SQL sensitivity Less than 5.6 µV (SSB) Selectivity SSB, CW, RTTY AM More than 2.1 kHz/-6 dB Less than 4.5 kHz/-60 dB More than 6.0 kHz/-6 dB Less than 20 kHz/-40 dB Spurious and Image Rejection More than 70 dB (1.6-29.999999 MHz) Audio Output Power (at 13.8 V DC) More than 2.0W at 10% distortion with an 8Ω load RIT variable range ±1200 Hz PHONES connector 3-conductor 6.5 (d) mm (1/4") EXT SP connector 2-conductor 3.5 (d) mm (1/8") / 8Ω
