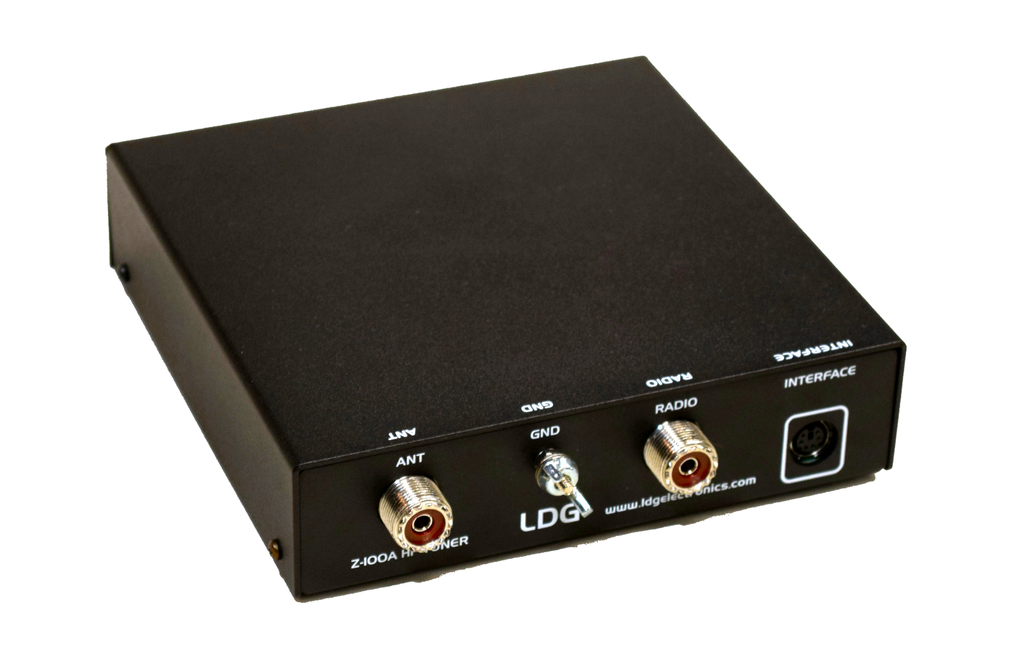

LDG Electronics Z-100A Automatic Antenna Tuner *In Stock

LDG Electronics Z-100A Automatic Antenna Tuner   The Z-100A features LDG’s famous 10:1 SWR tuning range that matches Dipoles, Verticals, End fed wires, G5RVs or even an Off center fed Windham. Easy integration means plug and play operation; installation could not be simpler. The Z-100A tuner goes anywhere with and HF radio… desktop, portable, parks, islands, or tall summits.   The Z-100A works with all modern HF radios, including ICOM, Yaesu, Alinco, Kenwood, and more. Included in the box is the IC-104 DC power cable, as well as the three foot IC-100 ICOM interface cable. Optional interface cables are available for Yaesu, Kenwood, and Alinco.     0.1 to 125 Watt SSB/CW, 30W Digital. 2000 memories for instantaneous band changing. Controlled from Icom Tuner button on radio or Push button on Tuner. Compatible with any Icom radio that is AH-4 or AH-3 compatible. (6M tuning from Tuner button for radios that are only AH-3 compatible) Partial radio list: IC-706, 703, 718, 7000, 7100, 7200, 7300, 7410, 746, 756, 7600, 7610 (and all variants). Tuning time: 0.1 to 6 seconds full tune, 0.1 seconds memory tune. 1.8 to 54.0 MHz coverage. Built-in frequency sensor. Tunes 4 to 800 ohm loads (16 to 150 on 6M) For Dipoles, Verticals, Vs, Beams or any Coax Fed Antenna. Includes Icom interface cable. Ready to use out of the box. Small Size Enclosure: 6.5″ L x 6.5″ W x 1.25″ H. Weight: 1.5 pounds.
